Polin is proud to announce the launch of "Magic Sphere", a new waterslide series with strong theme options and riding experience that offer streamlining recreation.

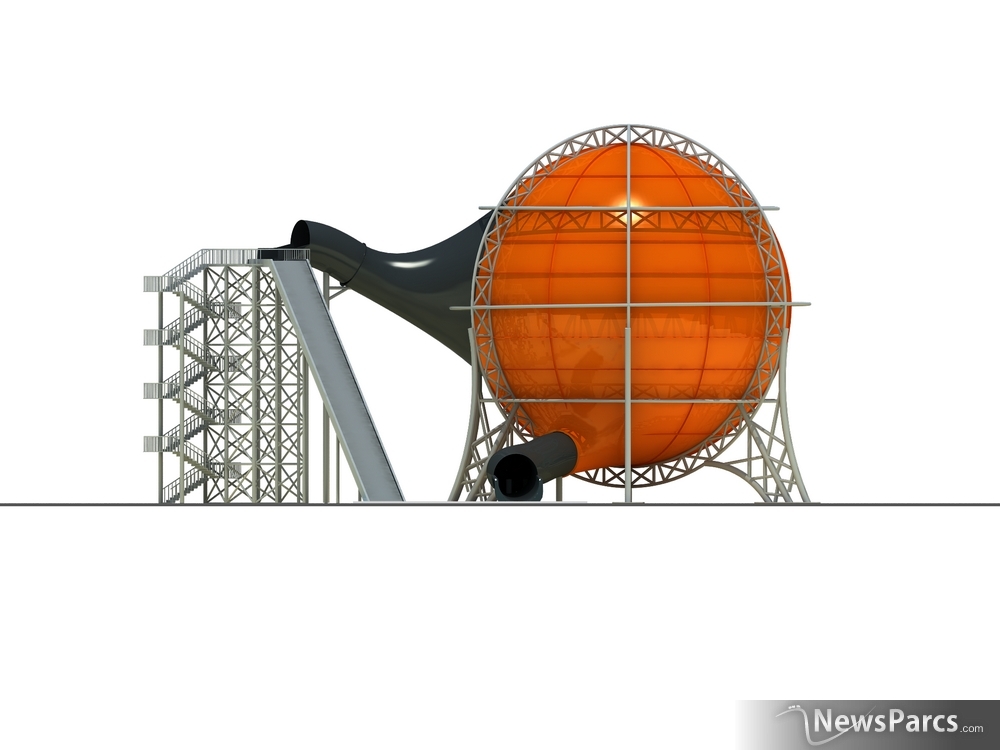

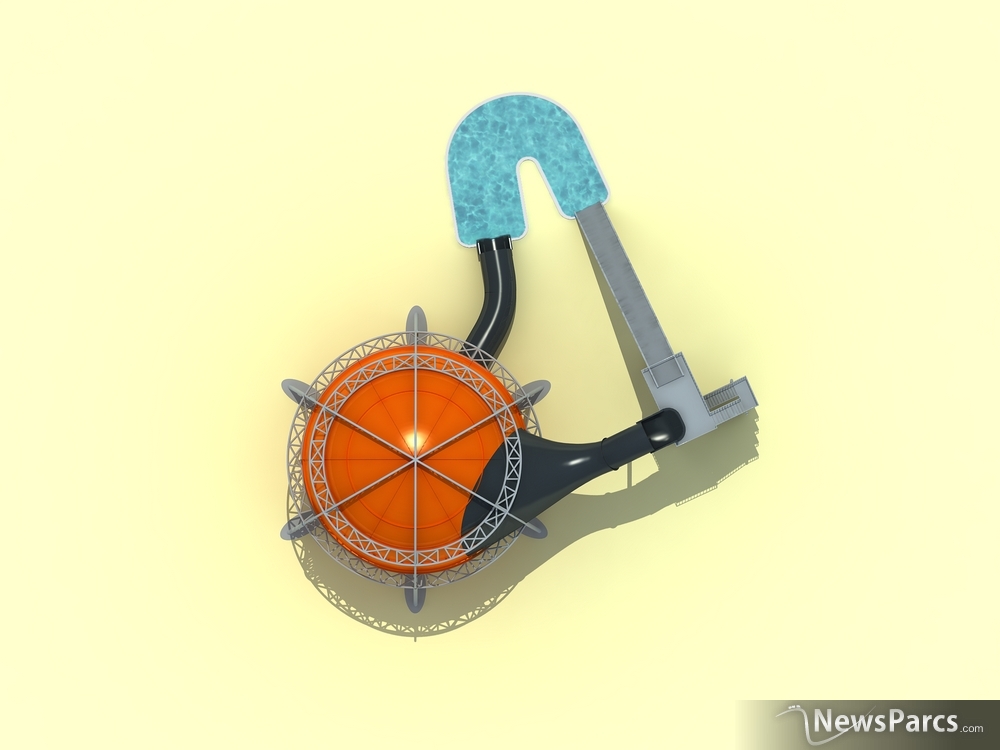

Magic Sphere

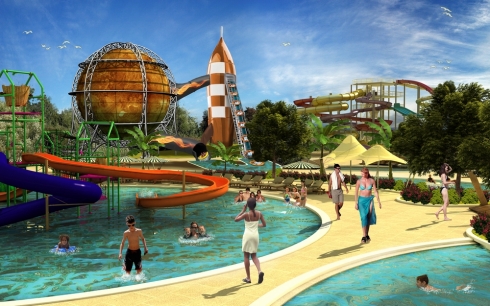

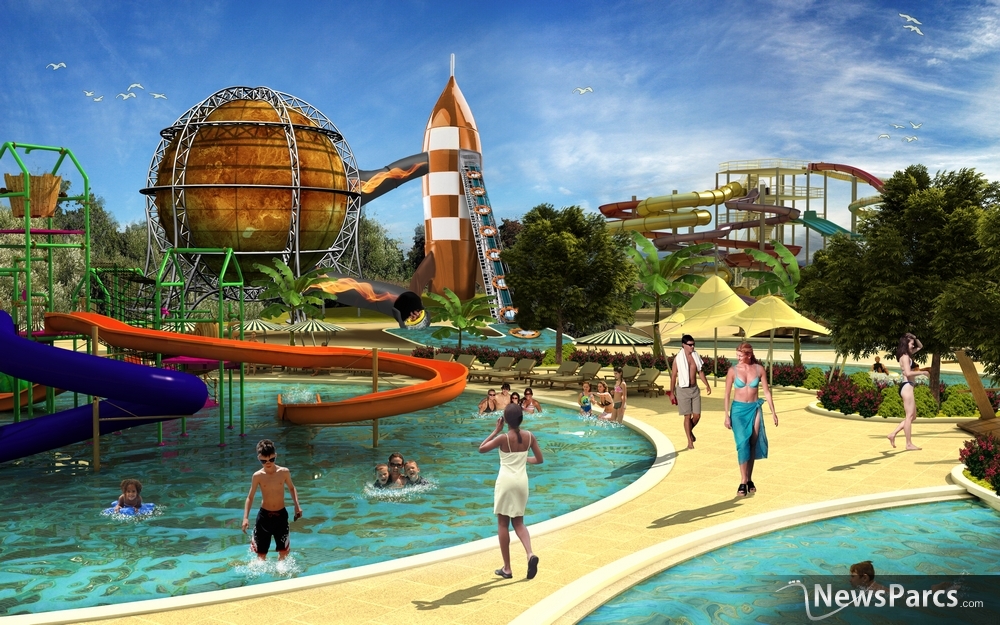

Magic Sphere is a patent pending, exciting, unique waterslide. It is unique in terms of its geometry and riding path. Due to its spherical geometrical shape, it makes a perfect match with any theme applications and coloring. In terms of riding experience it offers a fuzzy path which makes the waterslide particularly special. The same rider might experience a new path each time s/he rides it. It is a high capacity ride with 4 people and can be expanded to 6 people. Polin's Natural Light Effects and Special Pattern Effects Technologies can be applied for any customization. Magic Sphere is being produced by Polin's special Resin Transfer Molding Composites Production Technology so it proves itself to be a superior quality waterslide aesthetically and physically.
These features of the Magic Sphere waterslide make it one-of-a-kind waterslide in terms of concept, design, theme application, manufacturing and engineering.
Detailed Description of the Riding Experience
You start the journey with a 4 people raft. Passing through the tunnel part, you experience a big drop into the sphere. The riders drop down with an angle of 32 degrees and they reach a speed of 32 mph/hour. Inside the giant sphere, they follow a fuzzy path. Auditory, visual effects can be added to make it more exciting. Riders oscillate up and down and the raft following another tunnel slide comes to an end in a splash pool or a dry-out.
Product Features
- Fuzzy ride path enables riders experience a new path each time.
- Perfect geometry to go with different theme application & coloring options.
- Strong Visual Impact
- High Capacity Ride - 4 persons (can be 6)
- Fully enclosed version for a completely dark attraction
- Partly open version available. The sphere can be half open or partly open.
- Translucency available.
- "Natural Light Effects" System Applicable
- Conveyor or Tower Available as an Entry Option
- Special Effects (Visual, Auditory, Foggy) Effects Available as Optional
- Configuration enables to choose between a pool or a run-out for the exit part
- Design configuration enables a higher circulation.
Manufacturing Technology Involved
Polin's special Resin Transfer Molding manufacturing technology is being used to produce the whole waterslide. RTM composites manufacturing technology, which is a closed molded technology, is the latest and the best production method in fiberglass waterslide manufacturing.
Technical Specifications
Typical Height : 24m 78' (feet)
Depth : 2800mm/20m 110in/62'
Width : 2800mm/20m 110in/62'
Slope : 10/40 %
Capacity : 120*4 persons./h
Tubes : Family
Length of the Slide ( each) : 27m+40m 88,5'+131' total 219' (feet)
Drop Angle : 32 Degrees
Speed : 14m/s 50km/h 32 mph (miles per hour)
Exit : Dry-Out or Pool
Exit Combination Available With 1 : Black Hole
Exit Combination Available With 2 : Rafting Slide
Natural Light Effects Applicability : Yes
Magic Shine Applicability : Yes
Special Pattern Effects Applicability : Yes
Flow Rate : 3520 GPM
Space Required : 48mx48m 157' x 157' (feet)
Adrenaline Index : 5/5
Spheres

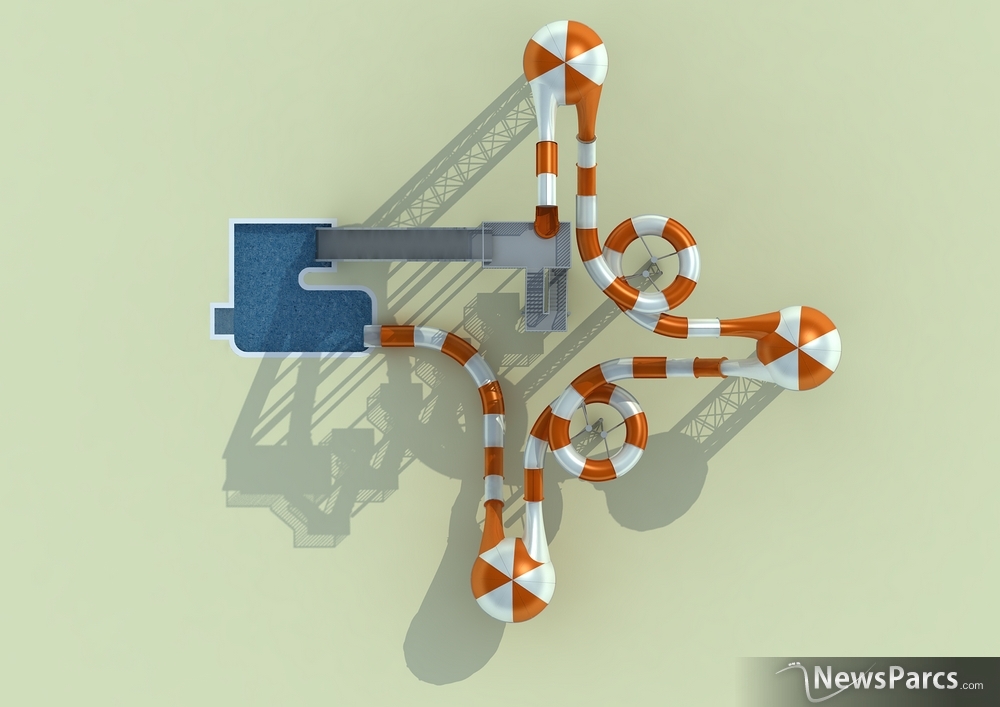

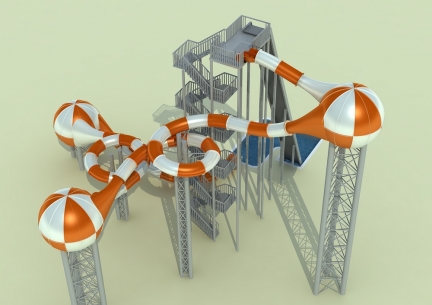

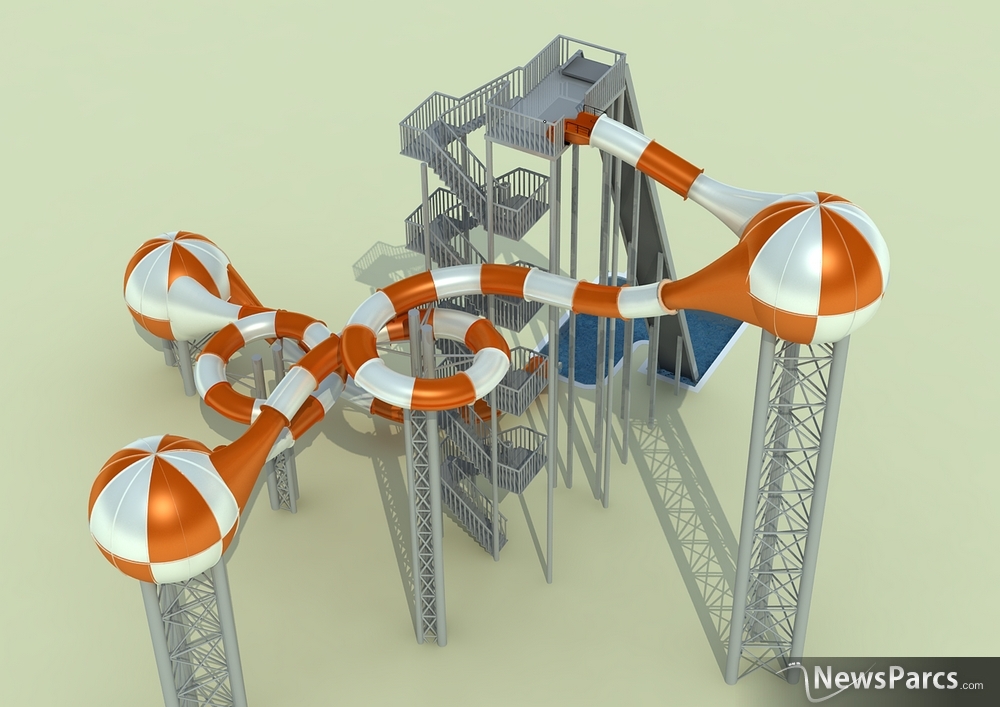

Polin is proud to share another streamlined design waterslide: "Spheres". Unlike giant "Magic Sphere", "Spheres" consist of several smaller shape spheres and tunnel slide parts in between. Similar to "Magic Sphere", many theme applications and coloring go perfect due to the geometrical shape of the spheres.
In terms of riding experience, the main feature is the rider's going into the sphere with a drop and doing the fast forth and back movement inside the sphere and leaving the sphere again with a drop. It is a two person ride. Polin's Natural Light Effects and Special Pattern Effects Technologies can be applied. "Spheres" is being produced by Resin Transfer Molding Composites Production Technology so it proves itself to be a superior quality waterslide aesthetically and physically.
Detailed Description of the Riding Experience
You start the journey with a double tube. Passing through the tunnel part, you experience a big drop into the first sphere, you make the forth and back movement and continue the journey by leaving the sphere again with a big drop to the slide part. This path repeats in line with the design, depending whether it is a double, triple or quadruple sphere. The journey ends in a splash pool or a dry-out.
Product Features
- Unique ride path
- Perfect geometry to go with different theme application & coloring options.
- Strong Visual Impact
- Fully enclosed version for a completely dark attraction
- Partly open version available. The sphere can be half open or partly open.

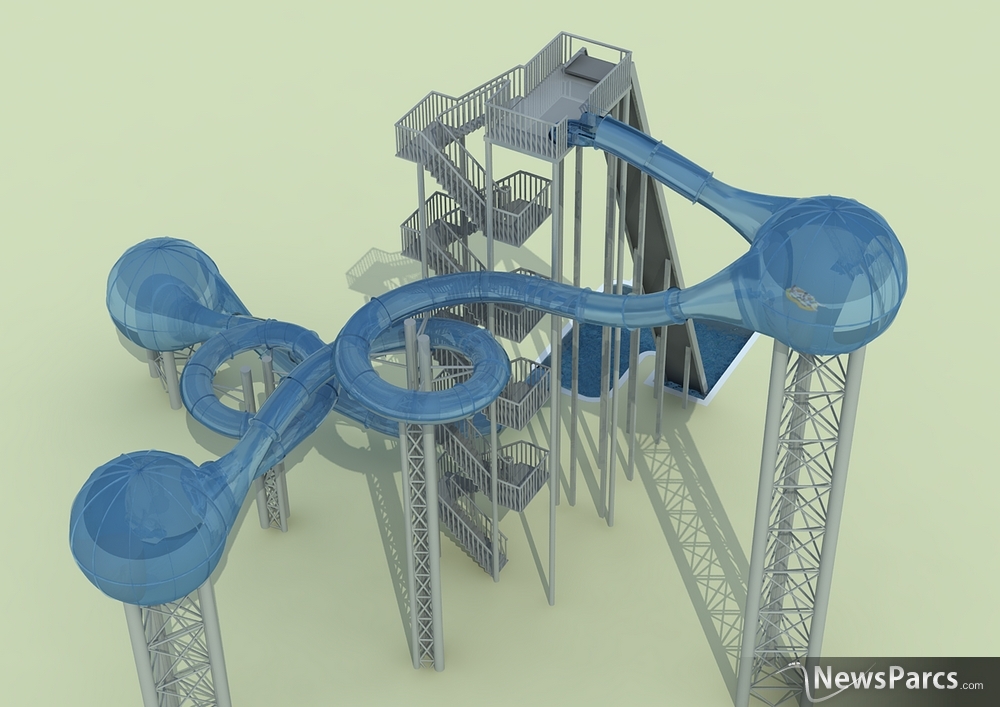

- Translucency available.
- Polin's "Natural Light Effects" System Applicable
- Conveyor or Tower Available as an Entry Option
- Special Effects (Visual, Auditory) Effects Available as Optional
- Double, triple, quadruple versions are available.
- Pool or run-out for the exit part
Manufacturing Technology Involved
Resin Transfer Molding manufacturing technology is being used to produce the whole waterslide. RTM composites manufacturing technology, which is a closed molded technology, is the latest and the best production method in fiberglass waterslide manufacturing.
Technical Specifications
Typical Height : 6m 19,6' (feet)
Depth : 1400mm/6m 55in/19,6'
Width : 1400mm/6m 55in/19,6'
Slope : 10/40 %
Capacity : 180*2 persons./h
Tubes : Double
Drop Angle : 32 Degrees
Speed : 10m/s 22 mph (miles per hour)
Exit : Dry-Out or Pool
Exit Combination Available With 1 : Black Hole
Exit Combination Available With 2 : Rafting Slide
NLE Applicability : Yes
Magic Shine Applicability : Yes
Special Pattern Effects Applicability : Yes
Flow Rate : 880 GPM
Space Required : 11mx7m each module 36' x 23' (feet)
Polin team will be present at IAAPA Attractions Expo (Orlando, FL, USA) from November 15-18, 2011 at booth number is 5162.
